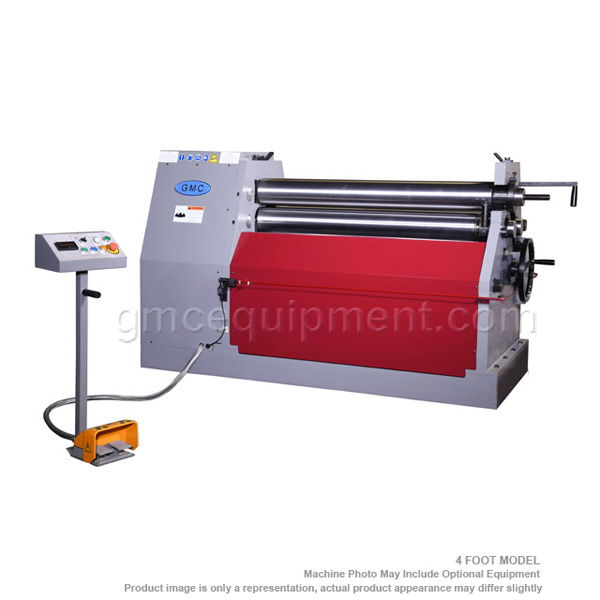

8 ft x 8 ga/12 ga Hydraulic Plate Bending Roll GMC HBR-0808
- ISO 9001 certified
- Taiwan Machines
- Easy swing –out top roller
- Standard cone attachment installed
- 1 each LED indicator for bending roll position
- Safety line all around the machine for emergency stop
- Heavy Duty all steel welded machine construction
- German Hydraulic logic system centrally located and quiet
- Bending roll is hydraulic powered up/down & tilting adjustment
- Planetary reduction gear and pump
- All three rolls are made of high grade alloy steel
- All rolls run forward and reverse
- Safety type foot pedal control
- Overload protection and disconnect switch
- Power source 208V/220V, (Option 460 V, 3 phase)
STANDARD ITEMS:
- LED readout indicator for bending roll position
- Safety line all around the machine for emergency stop
- Removable safety foot pedal
- Tool Box
- Cone attachment ( to make cone parts)
- (3) wire grooves 3/8”, 1/2”, 5/8” on roll for bending wire
Hydraulic Plate Bending Roll Specifications
|
Capacity: Mild Steel
|
8’ x 8 ga.
|
|
Capacity: Stainless Steel
|
8’ x 12ga.
|
|
Min. Roll Diameter
|
8-1/2”
|
|
Rolls Length
|
8’4″
|
|
Rolls Diameter
|
6-1/2”
|
|
Pre-Bend
|
0.18”
|
|
Rolls Speed
|
7 rpm
|
|
Rolls Opening
|
2-1/16”
|
|
Oil Tank Capacity
|
25 gal.
|
|
Main Motor
|
7-1/2 HP, 220V/440V, 3 PH
|
|
Overall Dimensions (LxWxH)
|
142″ x 38″ x 58″
|
