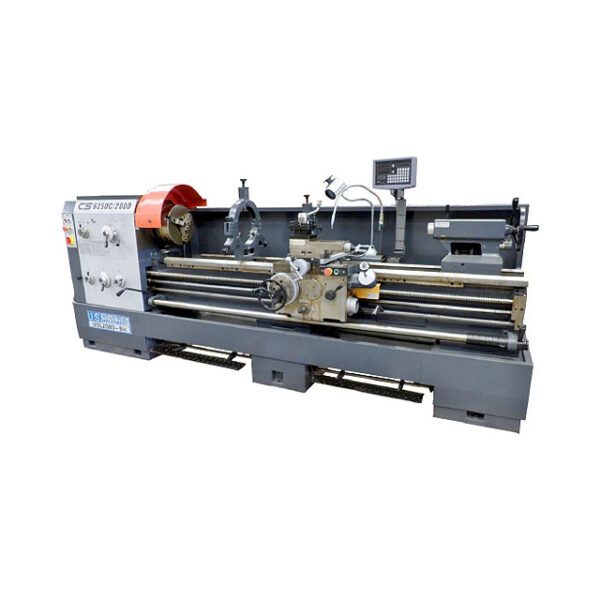

USI 20″ x 80″ Precision Geared Head Engine Lathe USL 2080BH-KIT 20″ x 80″
This precision, heavy duty geared head engine lathe incorporates hardened and precision ground bedways on longitudinal and cross ways, and wide, precision ground gears. It has a gap-bed design, feed-rod/lead screw safety interlock system, weight bearing tailstock and forward/reverse levers at both the aprons and the head stock.. As with all U.S. Industrial lathes, it comes with a plethora of standard accessories, 3 and 4-jaw chucks, follower and steady rests, 4-way rapid travel, work lamp, a coolant system and an operator/service manual.
STANDARD EQUIPMENT: 12″ 3-jaw chuck. Universal, self-centering with an American standard tongue and groove top Jaws. 16″ 4-jaw independent chuck. Steady rest. 4-way toolpost. Thread Dial. Work lamp. Flood coolant system. Sino 2-axis digital readout inch/metric (installed). Inch reading dials on Apron, Cross-Slide and compound. Manual with test certificate. 25″ Face Plate & Dog Plate. Foot brake with microswitch and brake. Follow rest. 4-way rapid travel. Safety chuck shield. Taper attachment (installed). Large spindle bore to pass 4″. Full length backsplash. Slide out chip pans. Note: Free Multi-position carriage stop.
